360 VIEW-SPL

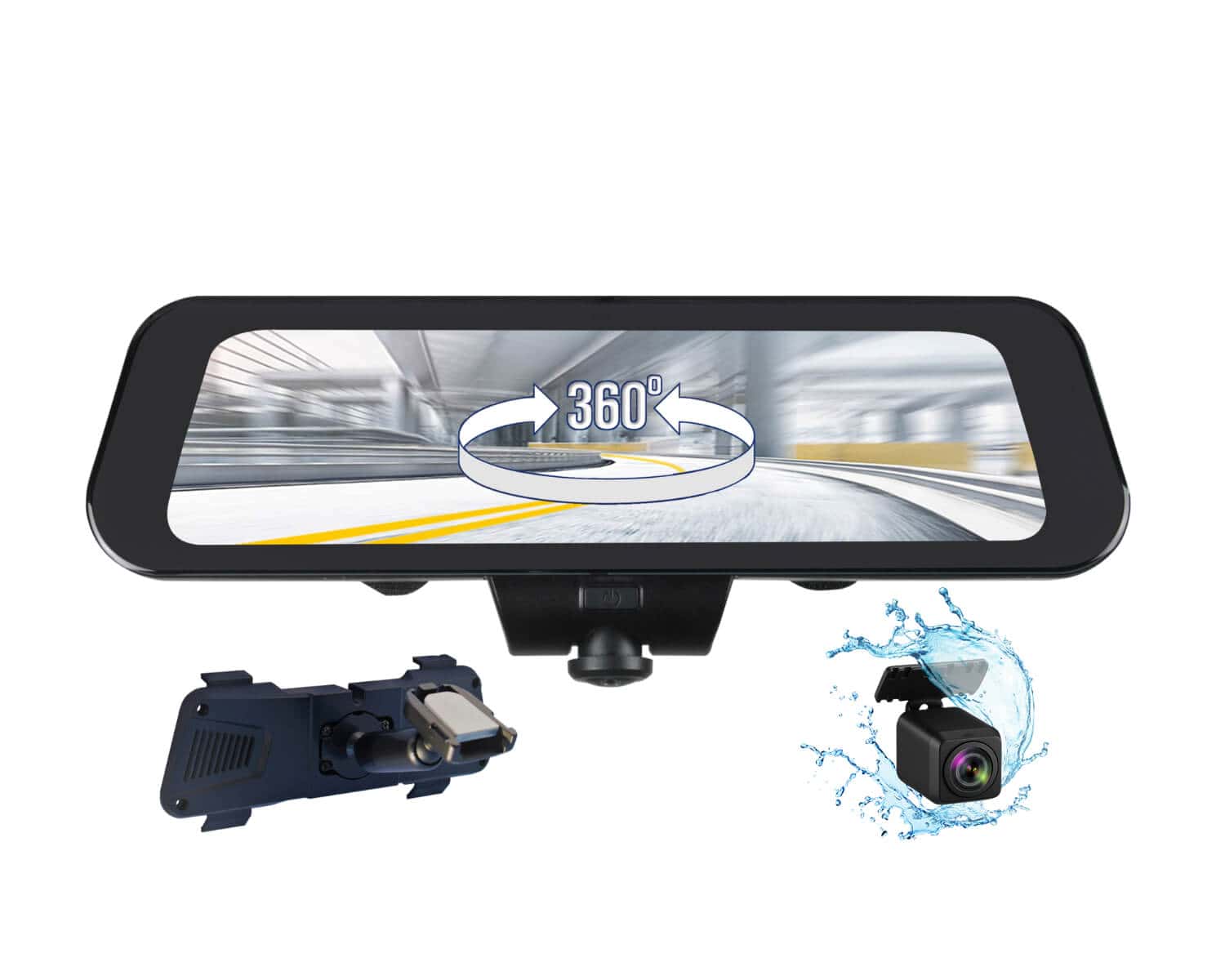

360 Surround View Frameless Rearview Mirror with 4K Dash and Backup Cameras
$499.00
- 360-degree video rearview replacement mirror with touchscreen
- 10-inch mirror DVR with TFT screen
- Auto sensing photo sensor for TFT screen brightness control
- AHD Rear Camera

Product Details
The 360 VIEW-SPL is a universal touchscreen 10-inch frameless rearview mirror with built-in dash cam/HD monitor with 360 surround video recording features. Users can then choose to display the front of the car, sides of the car and the rear seat, for monitoring passengers. Frameless Infinity Polished Edge Mirror Design for clean look, using optic bonding for monitor assembly with no air gap between the front glass and TFT screen for ultra-high brightness, and high color contrast viewing. Includes an auto sensing photo sensor for TFT screen brightness control, so automatically set to maximum brightness during daytime and less bright during night. Users can swipe left and right on the mirror to view the particular perspective they wish to see, with split screen views of multiple angle options, 360 VIEW-SPL can show a 360-degree view simultaneously on all multiple view selections for complete viewing coverage.
The 360 VIEW-SPL includes the items listed below. Call our technical support for details.
- Windshield Install Backpack Adaptor with replacing OEM mirror
- Rear AHD Camera allows for backup view (auto trigger) and rearview (streaming view) also the video records on the 2nd channel of TOMBO 360X DVR recording

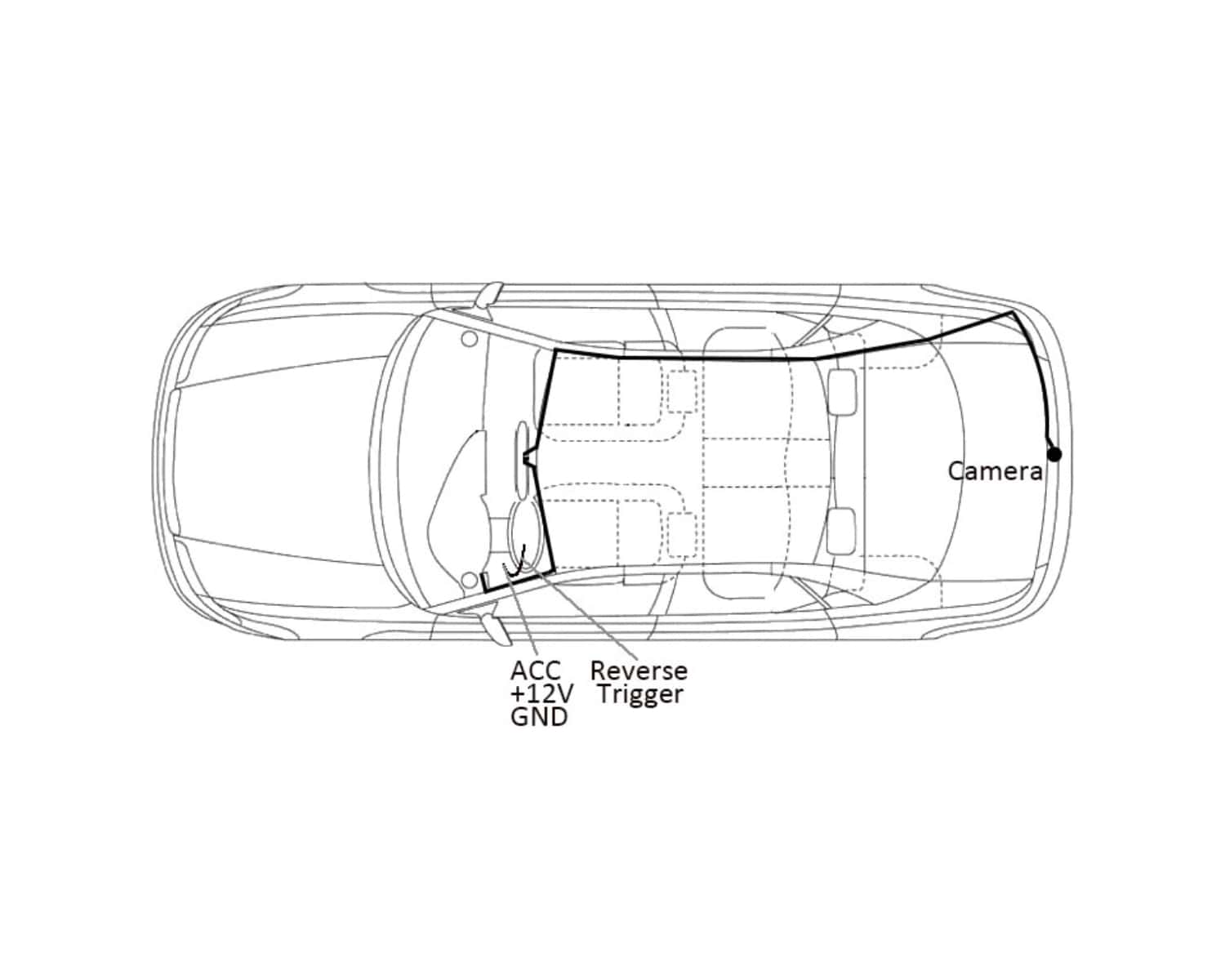

- Hardwire Power Cable allows Reverse Trigger, Last View Setting Memory, Continuous Power to 2nd Memory Drive (SSD) after ACC is off
Videos
Downloads
Product Specs
Basic Parameters
- Video Input (backup camera): AHD
- System Language: English, French, Spanish
- Screen Dimensions: 9.55 inches
- Touch Screen Type: Resistive
- Front Camera: H360°/27.5 fps
- Audio Line-Out: Built-in 8Ω/ 2W speaker* 1 for audio/voice playback
- Audio Power (Internal): 4Q2W
- Power Supply Voltage: DC 9V to 24V
- Rated Current: 600mA
- Super Capacitor Size: 8.5*17*32MM
- System: Linux
- Storage: Built-in Micro-SD slot
- Operational Temperature: -10℃~ +60℃
- Storage Temperature: -30℃~ +70℃
- Operational Humidity: 45%~80%RH
- Storage Humidity: 30%~90%RH
GPS Hardware Parameters
- Date Update Rate: 1Hz
- Warm Startup Time: 1 Sec (average)
- Cold Startup Time: <33 Sec (average)
- Maximum Speed Rate: <280 m/s
- GPS Antenna Gain: 30dB
- Power Voltage: 3.3V
In the Box

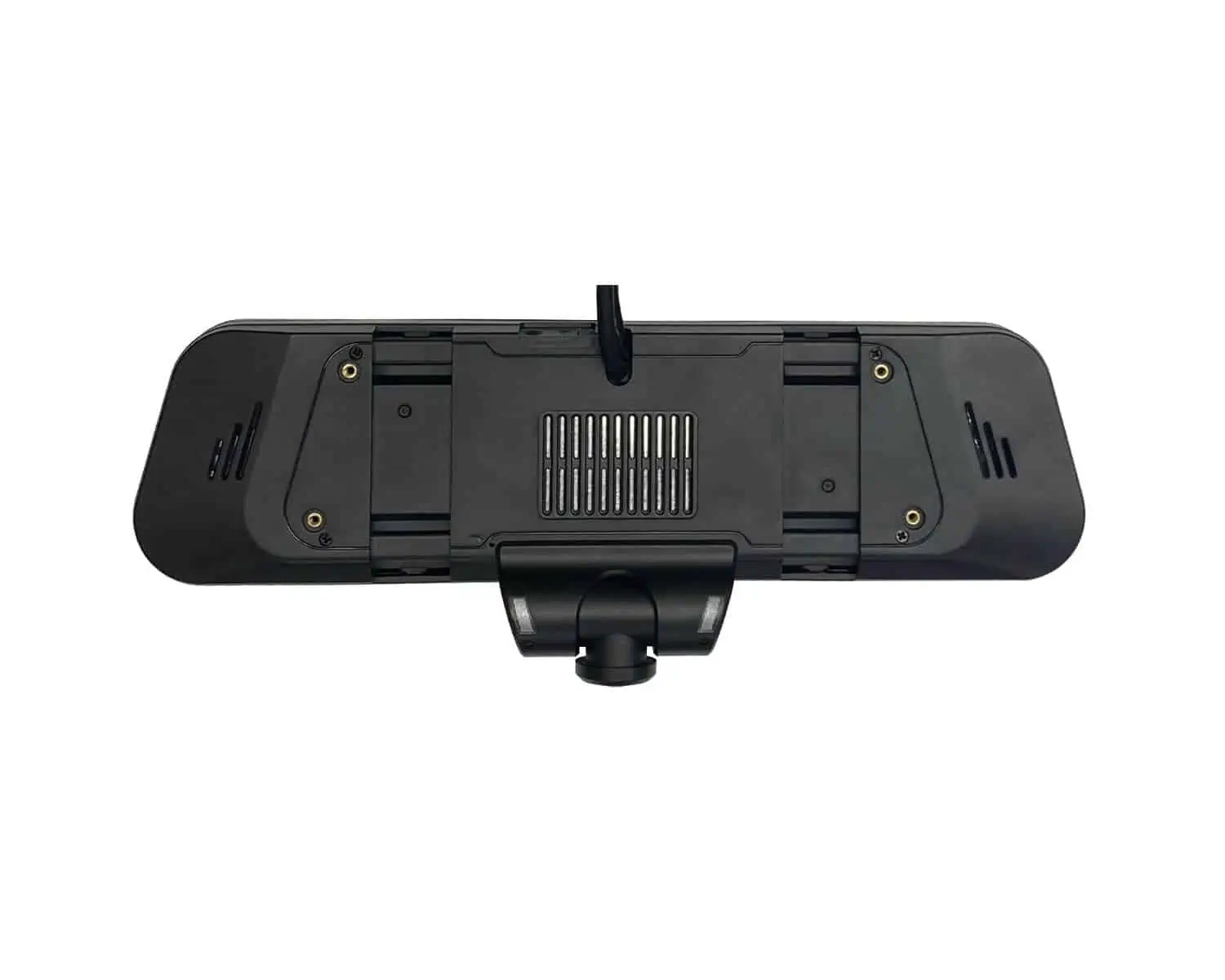

- 360 View-SPL Main Unit
- Backpack Adaptor for Mirror Stem

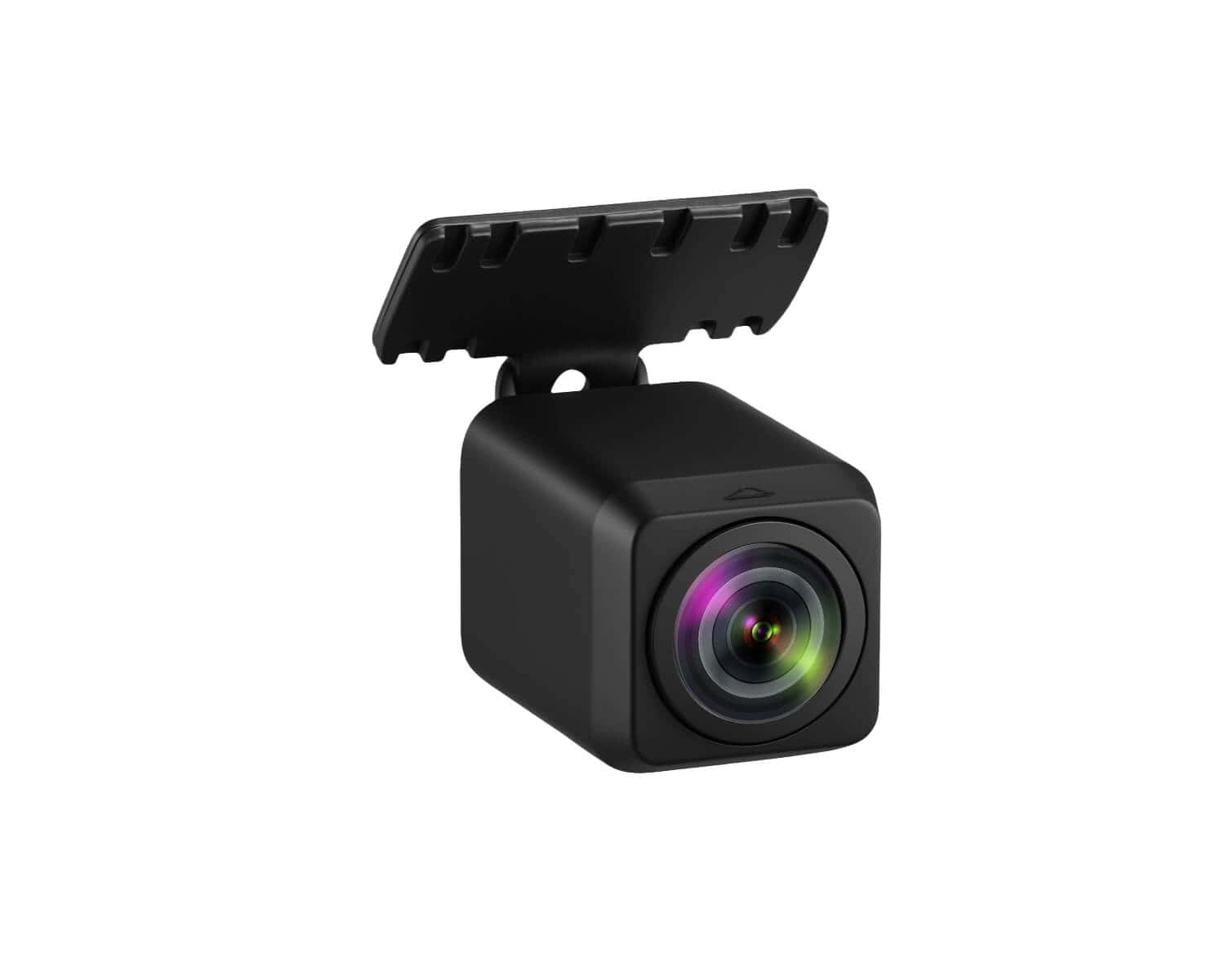

- AHD Backup Camera
- AHD Camera Extension Cable
- Power Wire Harness for Hardwire Installation
- VSM-AV Mirror Stem Fit Most Vehicles
- D-Tab
- GPS Unit
- Mounting Adhesive

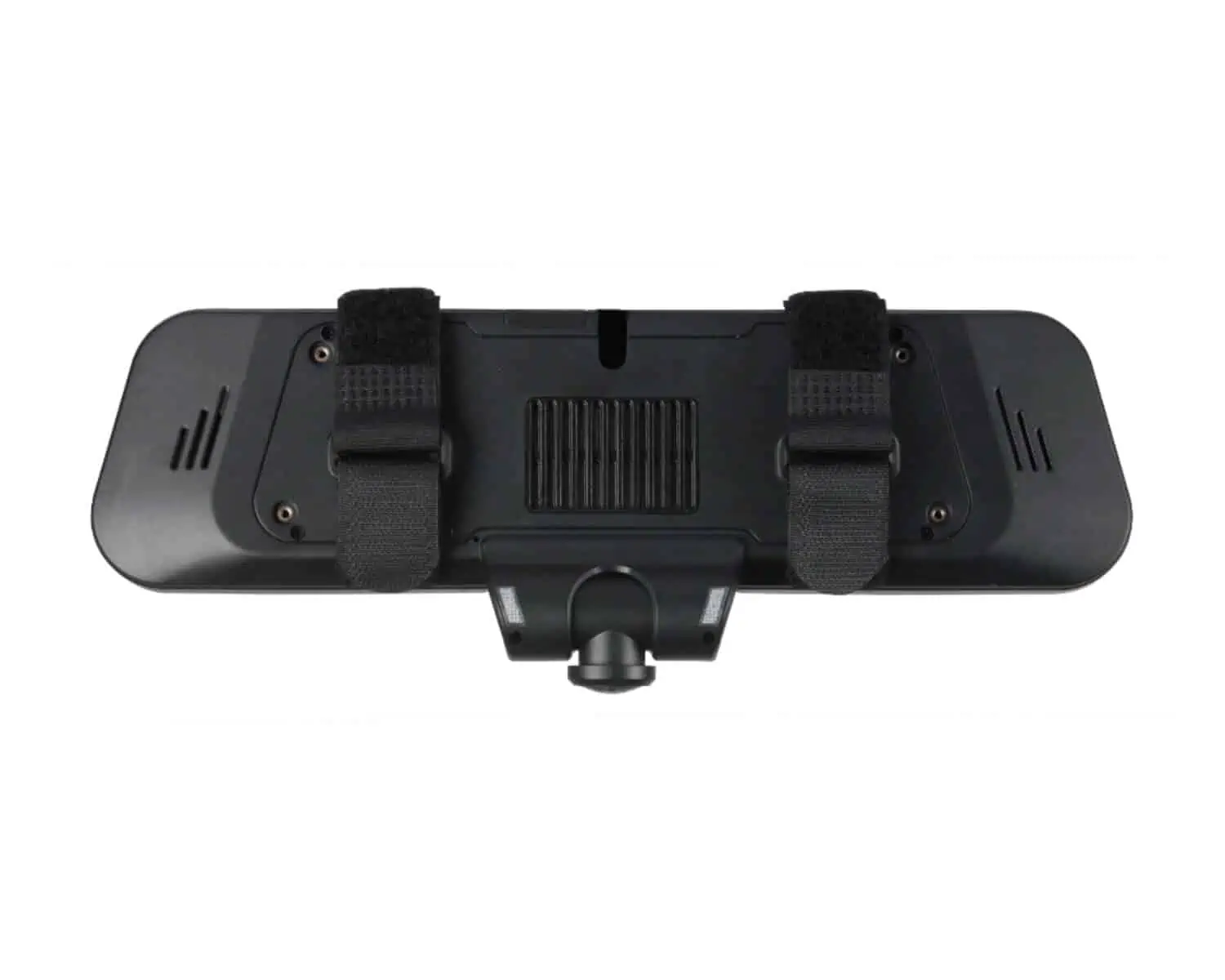

- Velcro Straps
- MicroSD Inserted in Slot
- Mirror Cleaning Cloth
- Pry Tool
- Screw Driver
- L-shaped Tool for MV Series
FAQs
- Backup camera connected but No picture – TURN ON PIP (Picture In Picture) which is under the SETTINGS menu.
- How big of a microSD card will the unit support? – 400 GB (tested-proven)
- Does microSD need to be in the mirror? – YES, it is required to have the microSD inserted inside the mirror unit all times, as it is the primary storage device. Without having the microSD inside the mirror, DVR will not record.
- Does this unit use a cloud service? – NO, this is a high resolution unit and can be played back instantly using the touchscreen monitor.
- Where do I get the video playback software for PC? – Provided inside the original microSD card is an EXE file that contains the video playback software. Please install this to your PC for viewing the video files from 360 VIEW-SPL by referring to your owner’s manual (page 27) or download from the Manuals / Guides section above.
- What kind of vehicles mounts will this work for? – The vehicle mount included (VSM-A) works for a majority of cars such as Toyota, Honda, Nissan, GM, Ford and Hyundai. We also sell different mounts separately, if the mount is not compatible to your vehicle.
- Can you use any RYDEEN backup camera to display with the 360 VIEW-SPL? – You can only use our CM-AHD1 camera (included) due to the video AHD format. Our other cameras are incompatible since they are CVBS video format where as the 360 VIEW-SPL and CM-AHD1 are AHD video format.
- Can you zoom-in on the picture? – You can playback the video on a touchscreen laptop, or use the mouse scroll to zoom-in.
- What speed microSD is appropriate for use with 360 VIEW-SPL? – Please use microSD with class 10 UHS-I speeds, at least 100MB/s or higher.
- Display turns off one min or two min after startup – Please make sure to turn off your screen saver feature.
- Display turns off immediately after startup – The 360 VIEW-SPL retains the mirrors last setting. If you manually turned off the display by pressing the power button, it will turn the display off on the next startup cycle.
