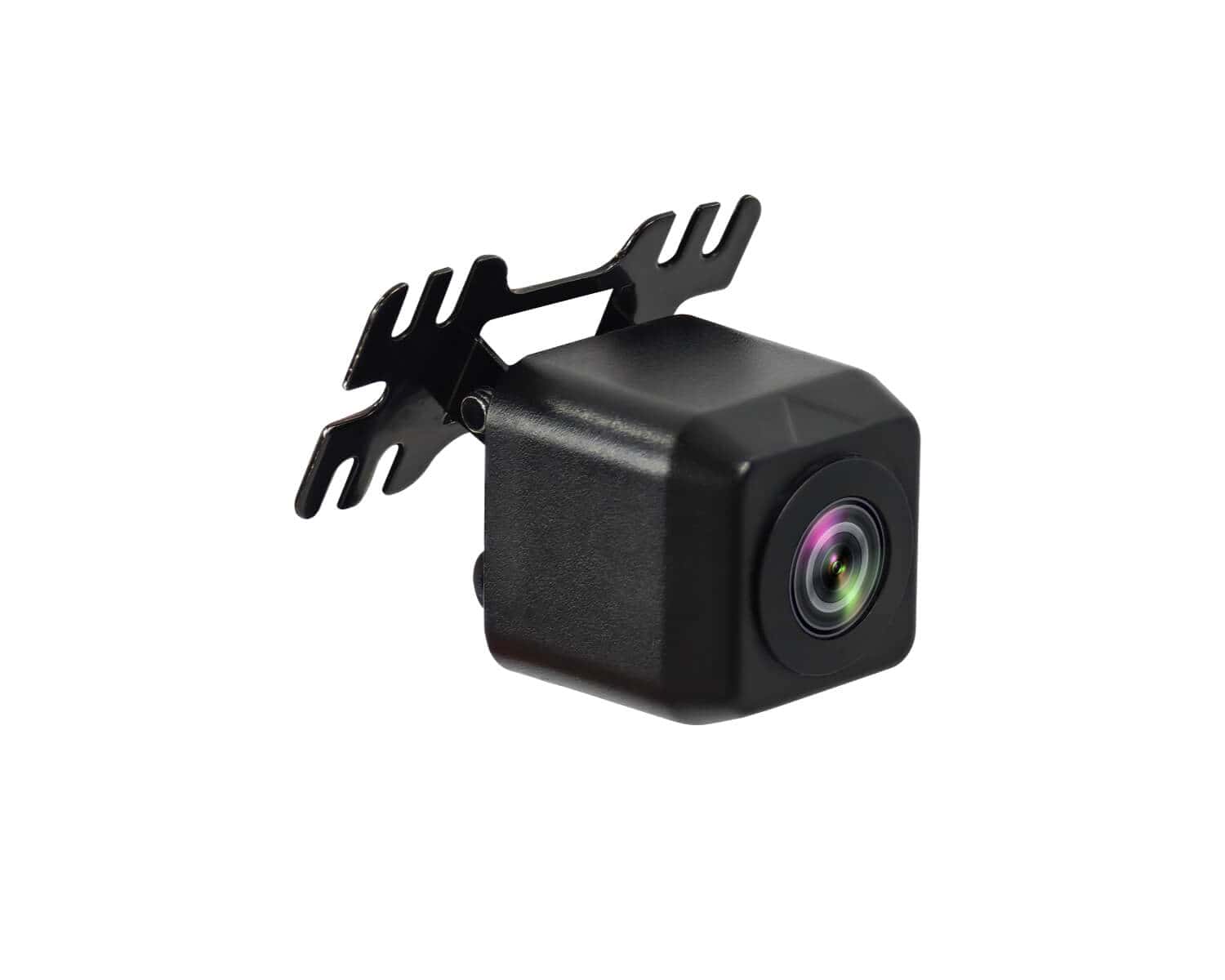

CM-HD4 — Backup / Forward Facing MINy Camera

CM-HD4 Backup Camera

Key Features

  • Resolution (TV LINES): 960
  • Minimum illumination: <0.1Lux
  • Angle: 170°
  • IP67 – IP68
  • Image: Mirror / Standard Selectable
  • Selectable Parking Guidance Line


Find a Local DealerNeed Help? Call Our Sales Team
1-877-777-8811

Share using

Details

The CM-HD4 is the latest in the line of MINy HD cameras released by Rydeen Mobile. The CM-HD4 is one of the best cameras on the market, and is versatile in that it can be used as a front camera or a rear camera on your vehicle. The HD camera gives you increased visibility with double the resolution of standard video.

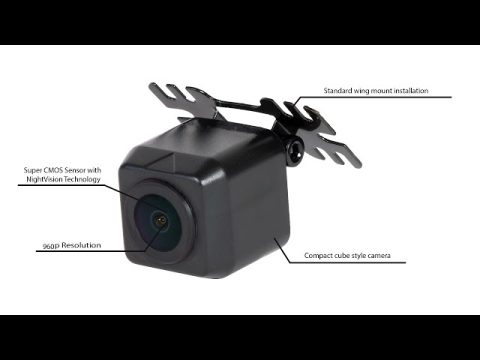

The camera can be mounted with double sided adhesive tape, or with short sheet metal screws for a more permanent position. Once the CM-HD4 is mounted it can be adjusted up to 90° for optimal viewing. It also includes a high quality CMOS Image Sensor, Night Time Visibility, and a Parking Line function.

The camera itself comes in a black, waterproof casing with an IP67 rating, 170° viewable angle, and a full color HD resolution display. This high-tech backup camera is a perfect choice for a vehicle where the visual addition doesn’t stand out too much.

This model will replace the CM-HD3, and has many of the same features as well as improved equipment.


Manuals / Guides

CM-HD4 — Backup / Forward Facing MINy HD Camera
Download


Specifications

Sensor:
1/3 CMOS
Resolution:
960(H) x 480(V)
TV Line:
960
Lens
1.7mm
Min illumination:
0.1 Lux
Video system:
NTSC (Color)
Body color:
Black (B)
Waterproof:
IP-67 – IP68
View angle:
170°
Voltage & current consumption
Range of operational voltage: 9 ~ 16V; Max operational circuit: 120mA
Operation temp.:
-22º~ +158º
Storage temp.:
-40º~ +85º


In the Box

  • Rydeen Camera
  • Power Wire Harness
  • Owner’s Manual
  • Warranty Card
