CM-LED4
Backup / Forward Facing MINy LED Infrared (IR) Camera
$199.00
- Resolution (TV LINES): 480
- Minimum illumination: <0.0Lux
- Angle: 170°
- IP67 – IP68
- Image: Mirror / Standard Selectable
- Selectable Parking Guidance Line
- Available Camera Mounting Brackets: BL01 (License Plate Bracket) & JB01 (Jeep Spare Tire Bracket)
In stock
Product Details

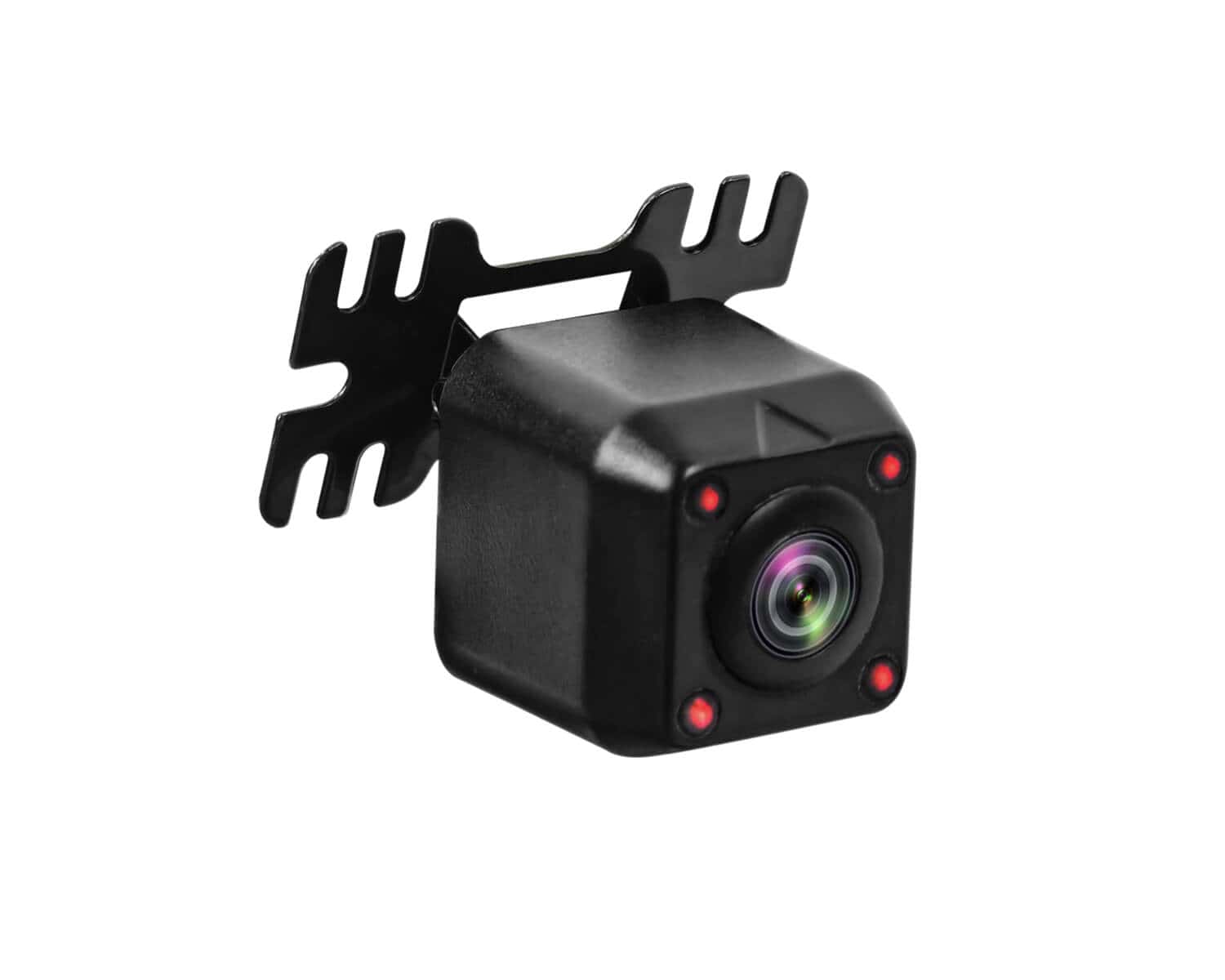

The CM-LED4 camera is part of the MINy Camera line, which makes it very small, and very easy to use. The thing that makes the MINy LED4 really stand out is that it has four led lights to help illuminate the area being displayed on your monitor, increasing overall visuals and decreasing changes for accidents. This camera also has night vision technology installed, so even in very poor lighting conditions, you can get a good idea of what is in front or in back of your vehicle.
The CM-LED4 MINy Backup Camera comes in a waterproof casing, has a 170° viewing angle, and full color display output. With multiple mounting options for your vehicle, you can’t go wrong with this highly versatile camera.

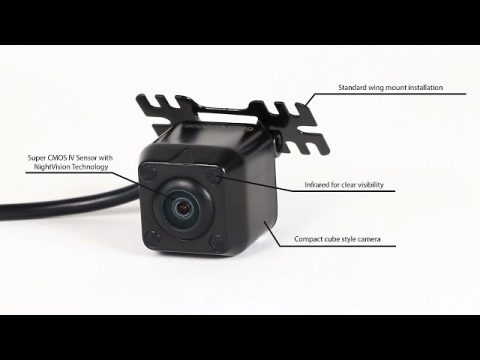

Videos
Product Specs
- Sensor: 1/4 CMOS
- Resolution: 316(H) x 224(V)
- TV Line: 600
- Lens: 1.7mm
- Min illumination: < 0.1 Lux
- Video system: NTSC (Color)
- Body color: Black (B)
- Waterproof: IP67 – IP68
- View angle: 170°
- Voltage & current consumption: Range of operational voltage: 9 ~ 16V; Max operational circuit: 90mA
- Operation temp.: -22º+149º
- Storage temp.: -40º~ +105º
In the Box
- Rydeen Camera
- Power Wire Harness
- Owner’s Manual
- Warranty Card
