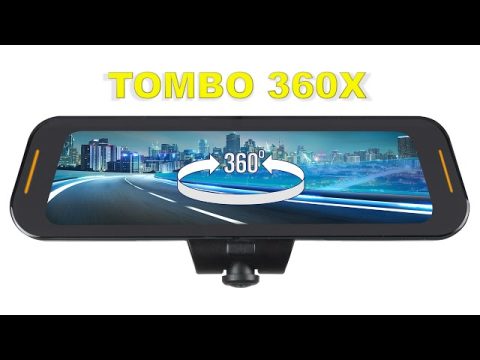

TOMBO 360X — 360 Surround View Frameless Rearview Mirror with 4K Dash Camera with 10-inch Touchscreen TFT Monitor with BSD (blind spot) Indicators (connector sold separately), Hardwire Power Harness, Rear Camera, Windshield Install Kit & Mount, Proximity Sensor for Parking Monitoring

Description

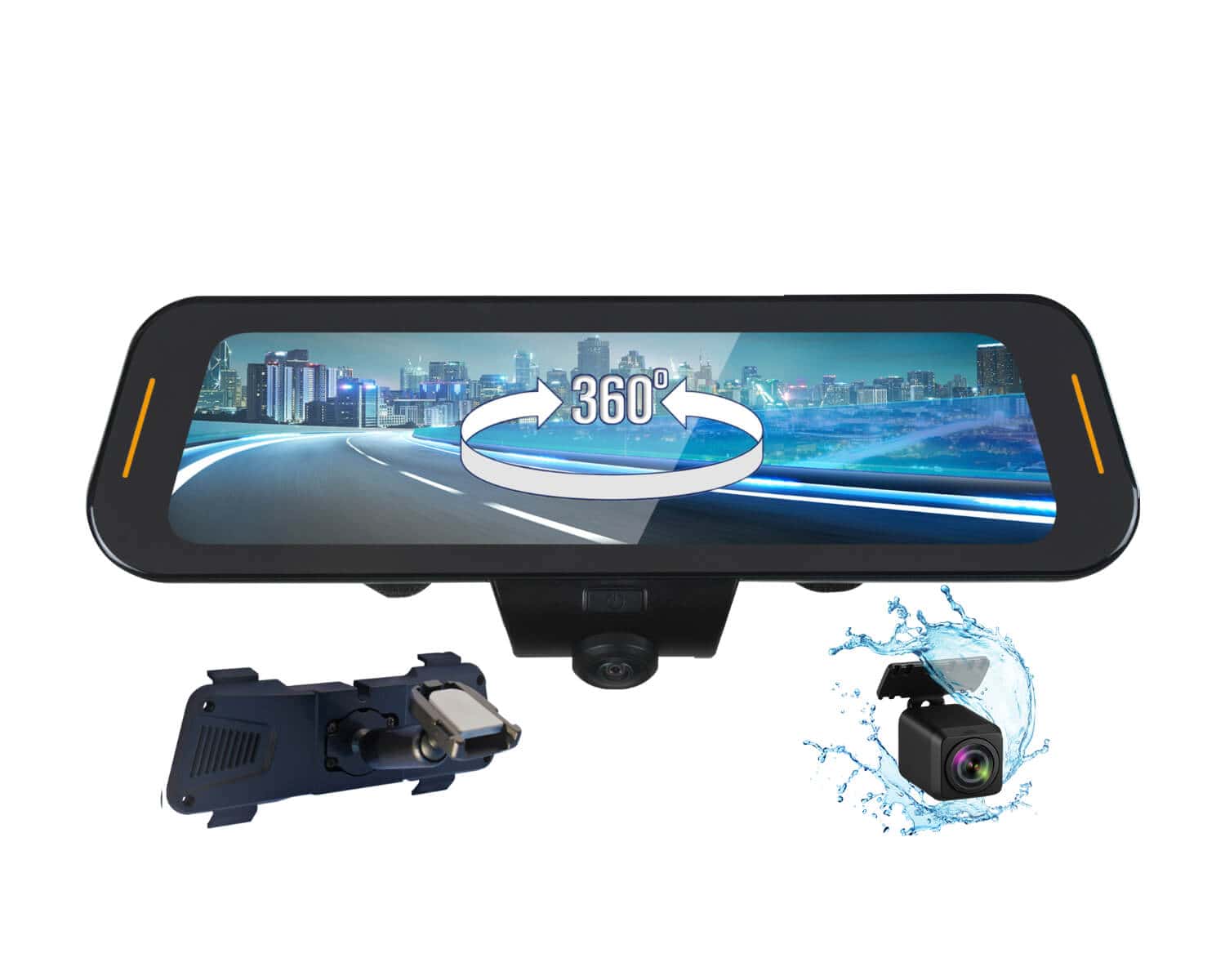

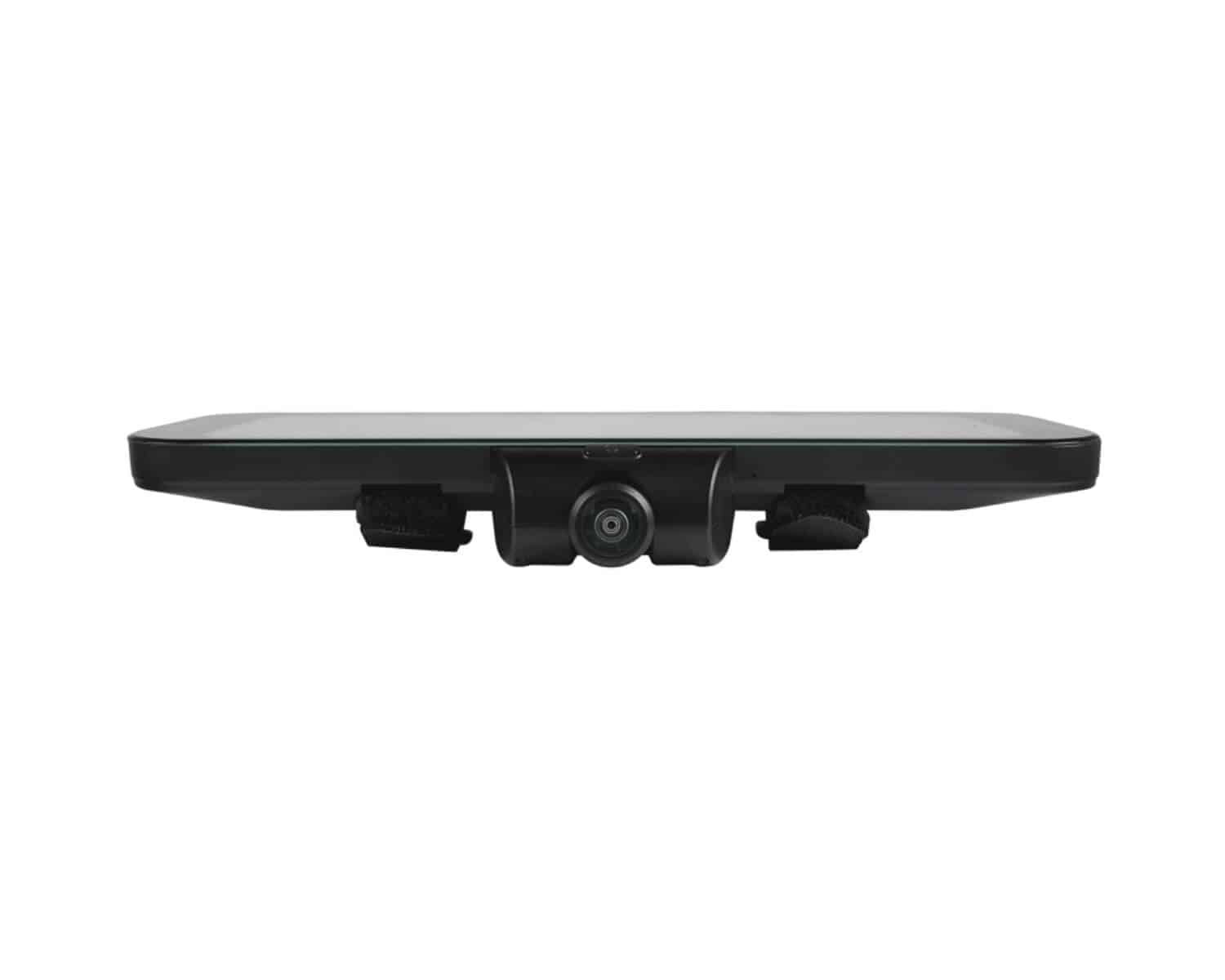

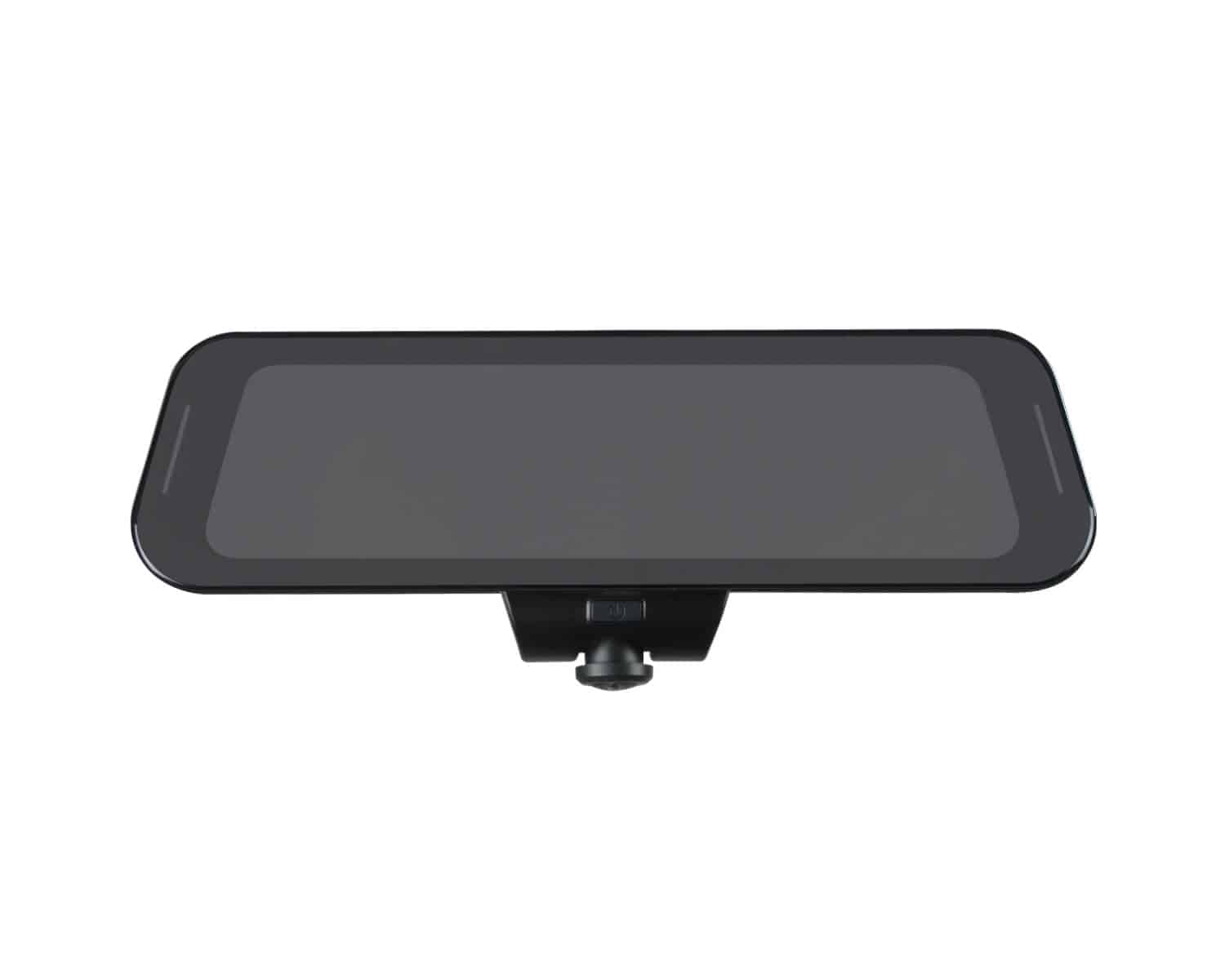

The TOMBO 360X is a universal touchscreen 10-inch frameless rearview mirror with built-in dash cam/HD monitor with 360 surround video recording features. Users can then choose to display the front of the car, sides of the car and the rear seat, for monitoring passengers. Frameless Infinity Polished Edge Mirror Design for clean look, using optic bonding for monitor assembly with no air gap between the front glass and TFT screen for ultra-high brightness, high color contrast viewing. Includes an auto sensing photo sensor for TFT screen brightness control, so automatically set to maximum brightness during daytime and less bright during night. Users can swipe left and right on the mirror to view the particular perspective they wish to see, with split screen views of multiple angle options, TOMBO 360X can show a 360-degree view simultaneously on all multiple view selections for complete viewing coverage. TOMBO 360X mirror enables adding RYDEEN Blind Spot Radar Safety products with internal LED indicators (connector cable P/N EXT-026 and blind spot products are sold separately). Makes the installation easy because of eliminating the removable of A-pillar and drilling holes for independent indicators.

TOMBO 360X includes a windshield mount (standard VSM-AV), AHD rear camera for backup view (video auto-trigger switching, viewing angle adjustable), hardwire cable, proximity sensor. Call our technical support for details.

• Windshield Install Backpack Adaptor with replacing OEM mirror

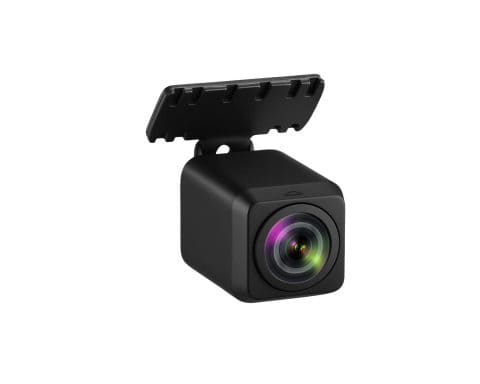

• Rear AHD Camera allows for backup view (auto trigger) and rearview (streaming view) also the video records on the 2^nd channel of TOMBO 360X DVR recording

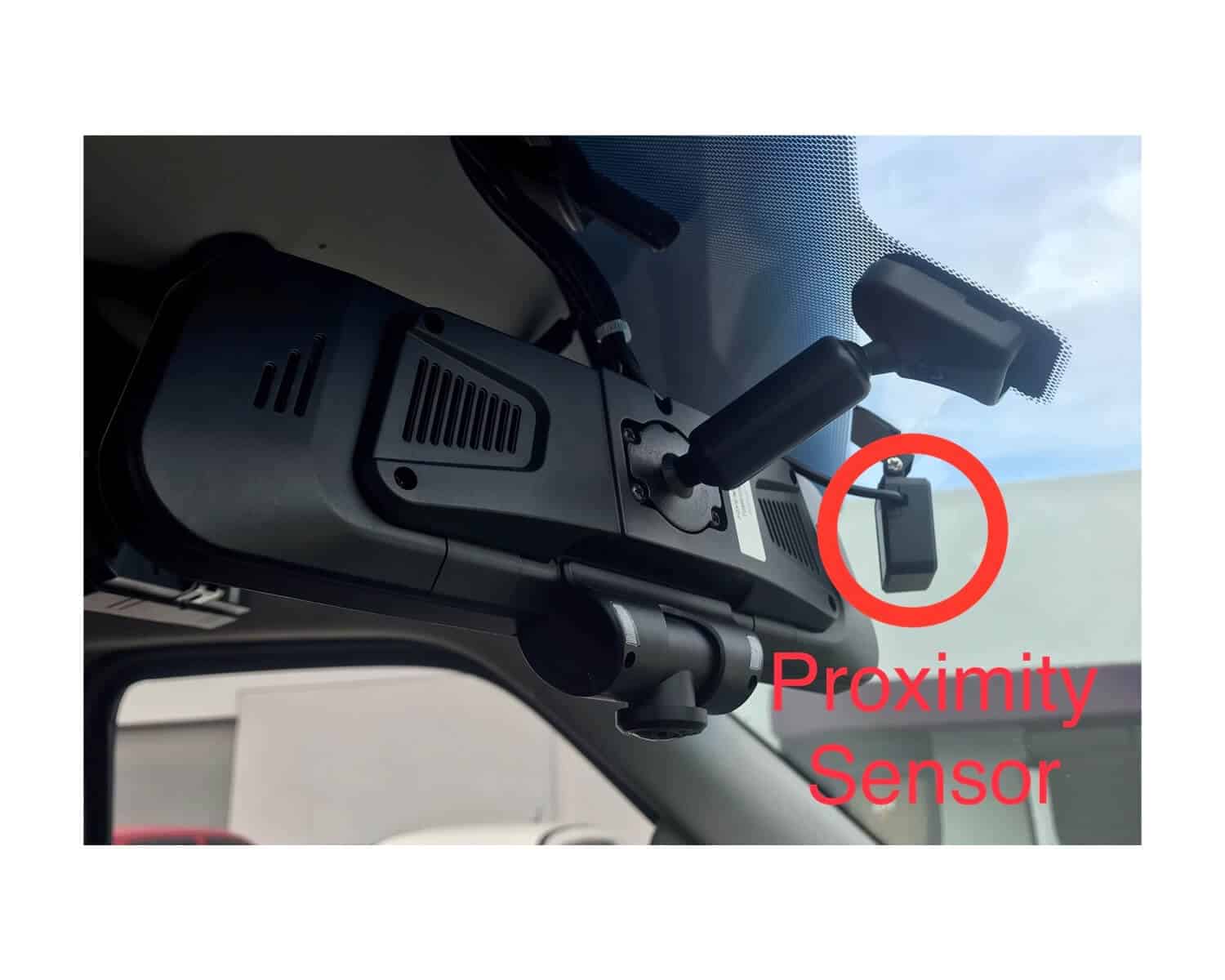

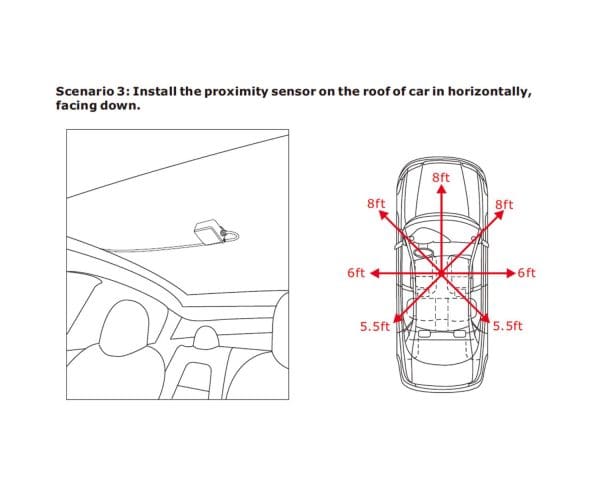

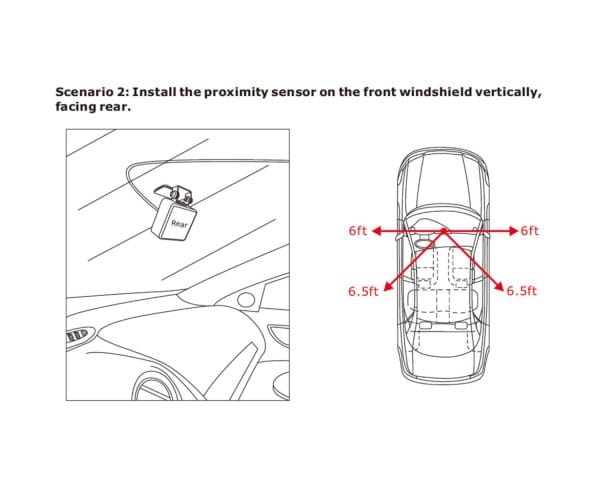

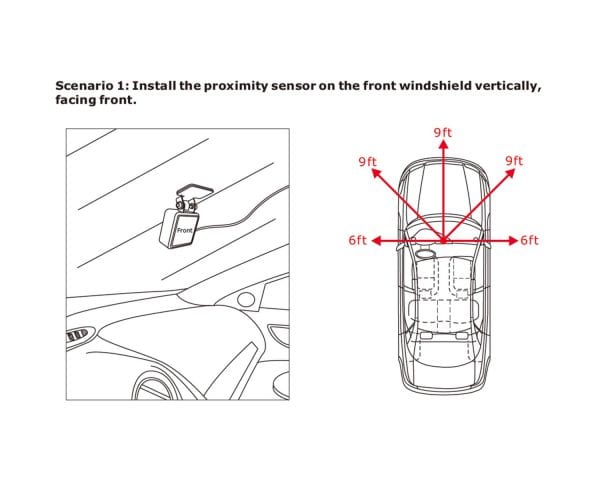

• Proximity Sensor for Parking Monitor

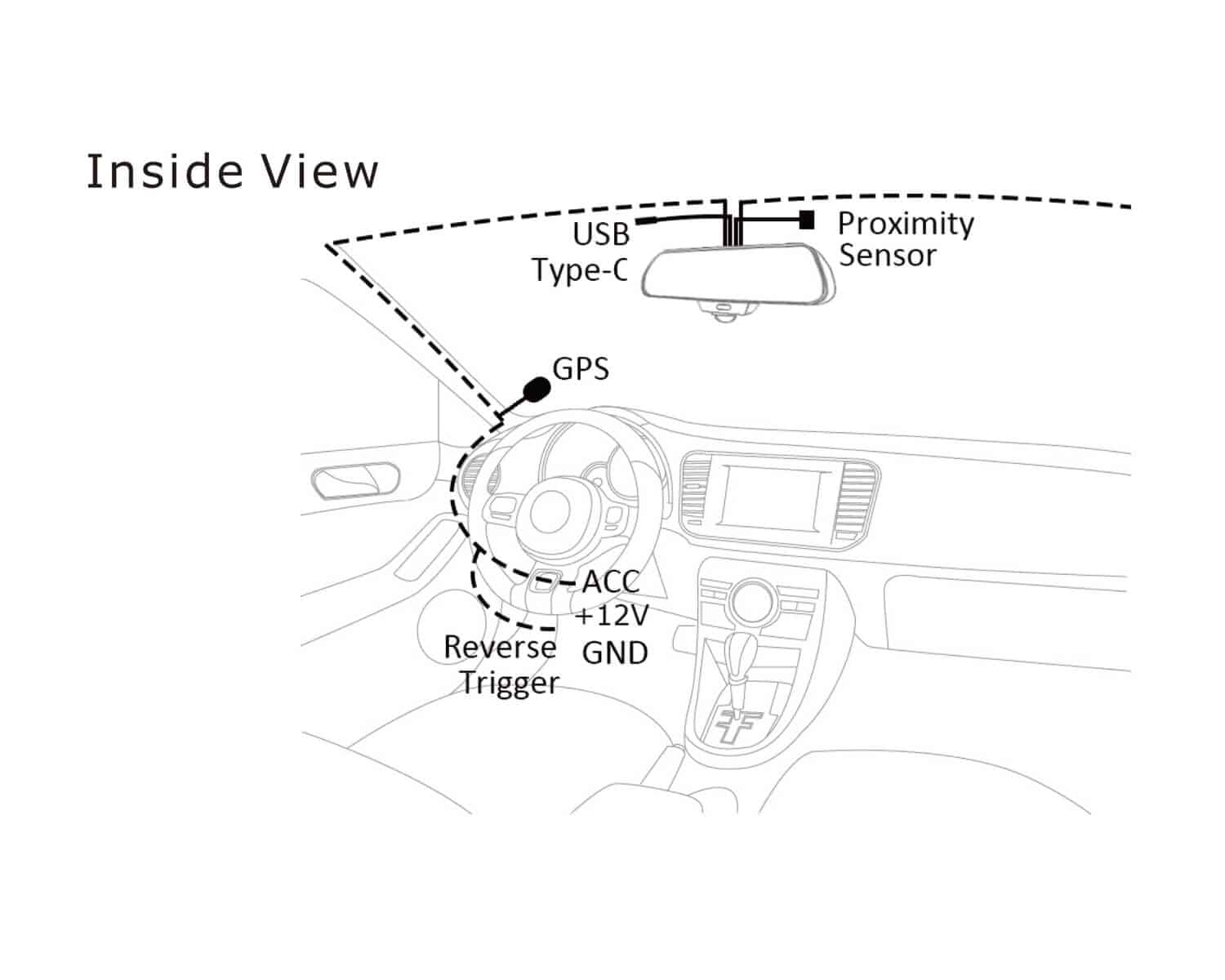

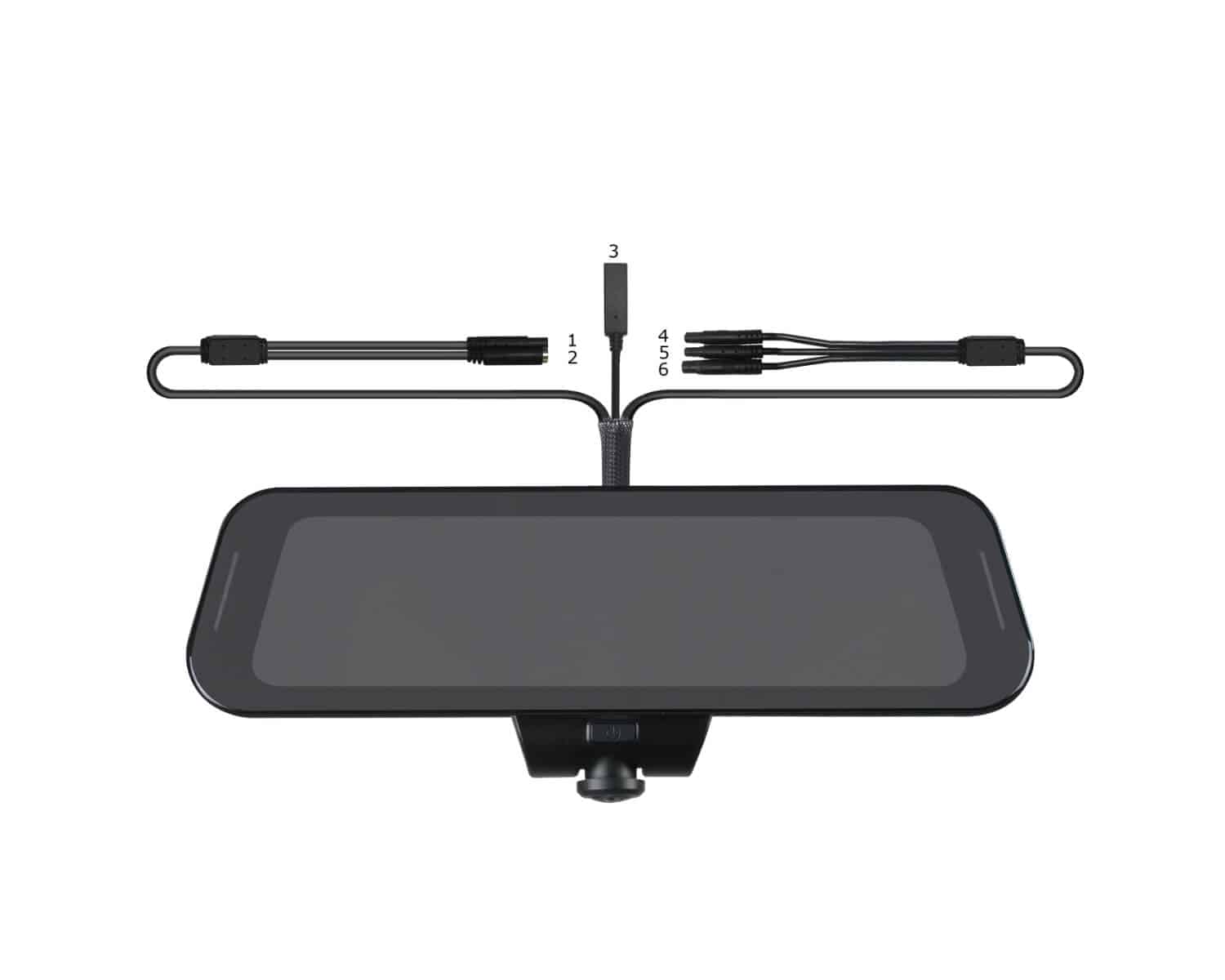

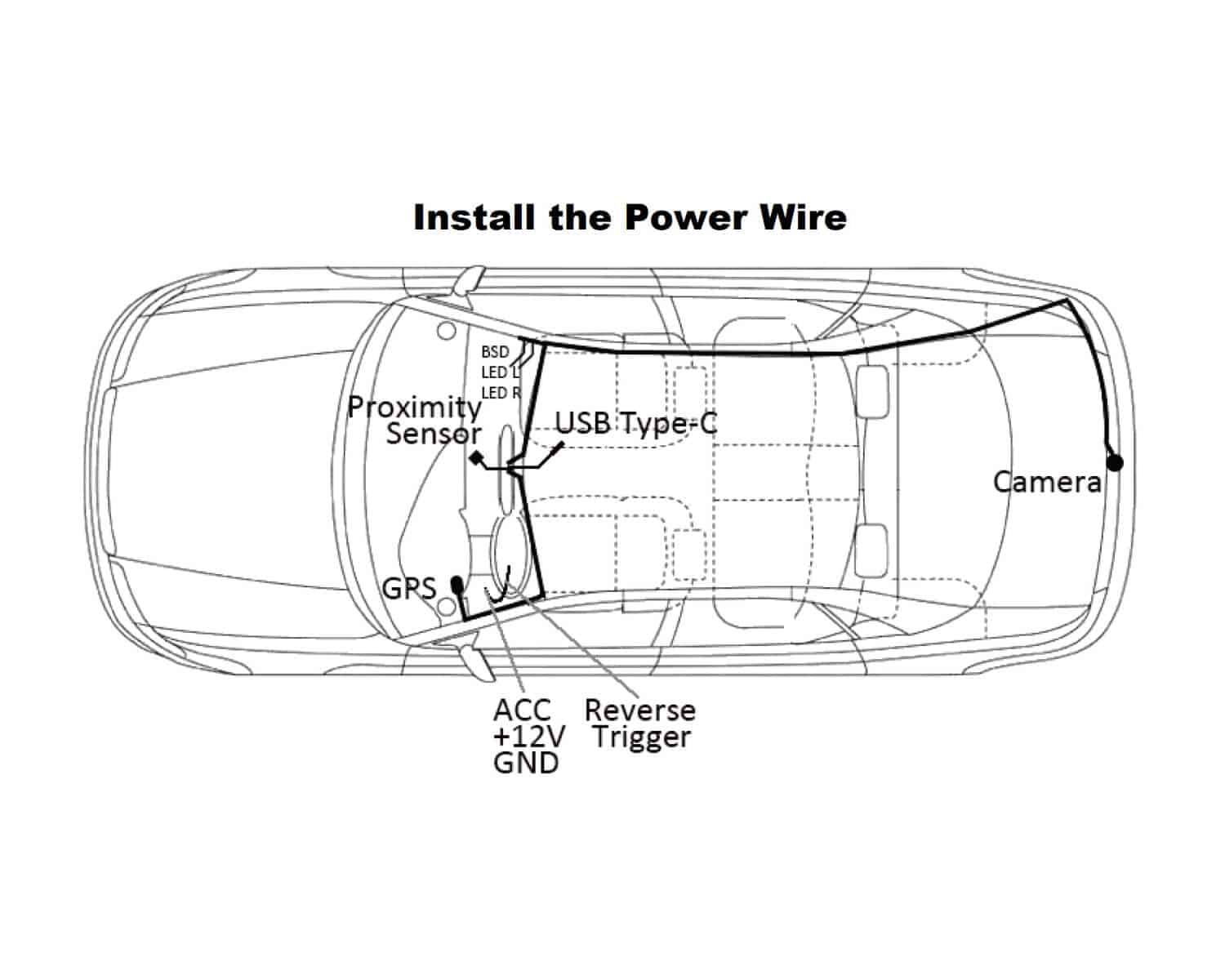

• Hardwire Power Cable allows Reverse Trigger, Last View Setting Memory, LED to RYDEEN Blind Spot (BSD) Kits (P/N EXT-026 connection cable sold separately), Continuous Power to 2^nd Memory Drive (SSD) after ACC is off

Manuals / Guides

TOMBO 360X — 360 Surround View Frameless Rearview Mirror with 4K Dash Camera with 10-inch Touchscreen TFT Monitor
Download User Manual
Download Quick Reference Guide

Specs

Basic Parameters

• Video Input (backup camera) AHD
• System Language English, Japanese, French, Spanish
• Screen Dimensions 9.55 inches
• Touch Screen Type Resistive
• Front Camera 1920*1920/ H360°/27.5 fps
• Audio Line-Out Built-in 8Ω/ 2W speaker* 1 for audio/voice playback
• Audio Power (Internal) 4Q2W
• Power Supply Voltage DC 9V to 24V
• Rated Current 600mA
• Super Capacitor Size 8.5*17*32MM
• System Linux
• Storage Built-in Micro-SD slot, External backup SSD
• Operational Temperature -10℃~ +60℃
• Storage Temperature -30℃~ +70℃
• Operational Humidity 45%~80%RH
• Storage Humidity 30%~90%RH

GPS Hardware Parameters

• Date Update Rate 1Hz
• Warm Startup Time 1 Sec (average)
• Cold Startup Time <33 Sec (average)
• Maximum Speed Rate <280 m/s
• GPS Antenna Gain 30dB
• Power Voltage 3.3V

In the Box

• TOMBO 360X Main Unit

• GPS Unit
• Mounting Adhesive
• Cigarette lighter Power Cable

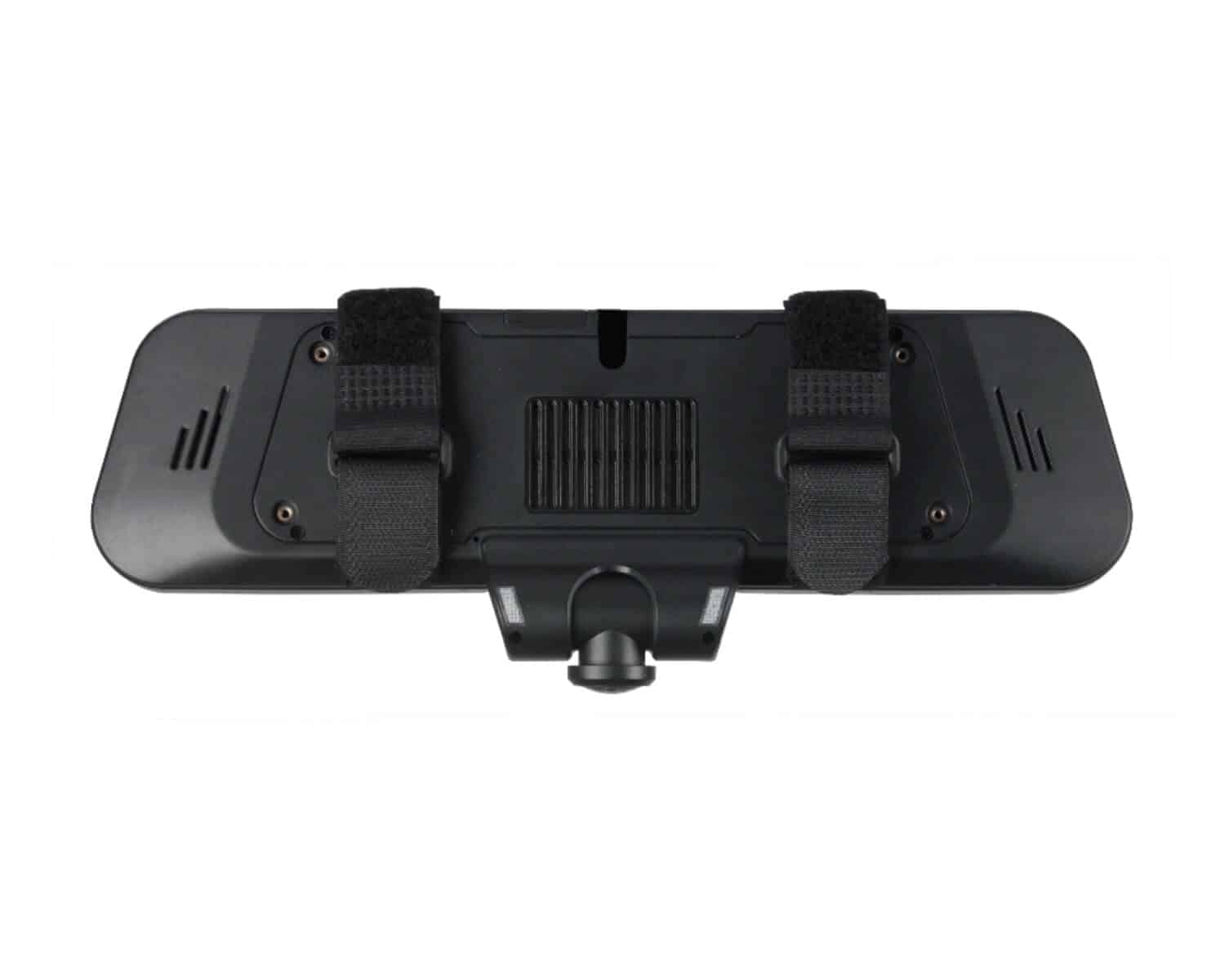

• Velcro Straps
• Type C-USB Adaptor
• MicroSD Inserted in Slot
• Mirror Cleaning Cloth
• Pry Tool
• Screw Driver

Videos

FAQ

1) Backup camera connected but No picture – TURN ON PIP (Picture In Picture) which is under the SETTINGS menu.

2) How big of a microSD card will the unit support? – 400 GB (tested-proven)

3) Does microSD need to be in the mirror? – YES, it is required to have the microSD inserted inside the mirror unit all times, as it is the primary storage device. Without having the microSD inside the mirror, DVR will not record.

4) What is the purpose of USB-C connector? – SSD or flash drive connected via USB-C is the 2^nd storage device for backing up the recoded video & picture files recorded on the primary storage (microSD inside the mirror). The USB-C connection to SSD supports up to 2 TB storage size.

5) Does this unit use a cloud service? – NO, this is a high resolution unit and can be played back instantly using the touchscreen monitor.

6) Where do I get the video playback software for PC? – Provided inside the original microSD card is an EXE file that contains the video playback software. Please install this to your PC for viewing the video files from Tombo360 by referring to your owner’s manual (page 27) or visit rydeenmobile.com/wp-content/uploads/TOMBO-360-user-manual.pdf

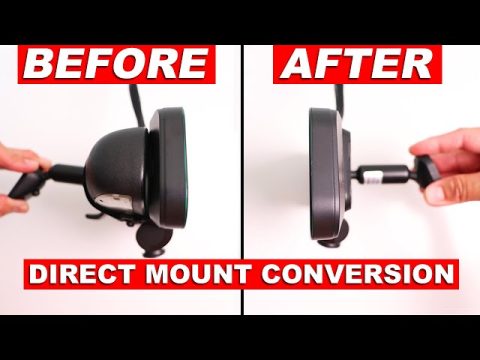

7) What kind of vehicles mounts will this work for? – With the PROKIT 1, VSM-A mount is included which is used for most GM, Toyota, Honda, Nissan, Ford and Hyundai vehicles. Also included in the PROKIT 1 are universal mounts that can adapt to almost any factory stem.

8) Can you use any RYDEEN backup camera to display with the Tombo360X? – NO, the video format is AHD. As of now, all other Rydeen cameras are CVBS video format. *PLEASE USE CAMERA FROM PROKIT 1*

9) Can you zoom-in on the picture? – You can playback the video on a touchscreen laptop, or use the mouse scroll to zoom-in.

10) What speed microSD and SSD is appropriate for use with Tombo360X? – Please use microSD and SSD with class 10 UHS-I speeds, at least 100MB/s or higher.

11) Display turns off one min or  two min after startup – Please make sure to turn off your screen saver feature.

12) Display turns off immediately after startup – The TOMBO360X retains the mirrors last setting. If you manually turned off the display by pressing the power button, it will turn the display off on the next startup cycle.
